My road to Certified Jenkins Engineer

Yay I am Jenkins Certified now

WARNING: Some House Keeping task, before reading this blog

1: As everyone needs to sign NDA with Cloudbees, I can’t tell you the exact questions asked during the exam neither I have GB of memory, but I can give you the pointers what to expect in the exam.

2: As we all know devops technology updates everyday, so some of the stuff might not be relevant after a few days/weeks/months…

3: Please don’t ask for any exam dump or questions, that defeats the whole purpose of the exam.

Exam Preparation

• CloudBees University offers three free courses. AFAIK these three are the best resources to prepare for this exam.

CloudBees University: Jenkins Administration - Fundamentals

CloudBees University: Jenkins Pipeline - Fundamentals

CloudBees University: Jenkins - Fundamentals

• Linux Academy: Unfortunately, Linux Academy Certified Jenkins Course doesn’t cover topics in-depth. I will talk more about this in the gotchas section, but I really like Implementing CI/CD Pipeline course, which is more of hands-on.

Course: Certified Jenkins Engineer | Linux Academy

Course: Implementing a Full CI/CD Pipeline | Linux Academy

• Jenkins World 2019 Video

Exam Pattern

• 60 multiple-choice questions in 90 minutes
• You must correctly answer 66% of the questions to pass the exam.
• Exam cost: $150

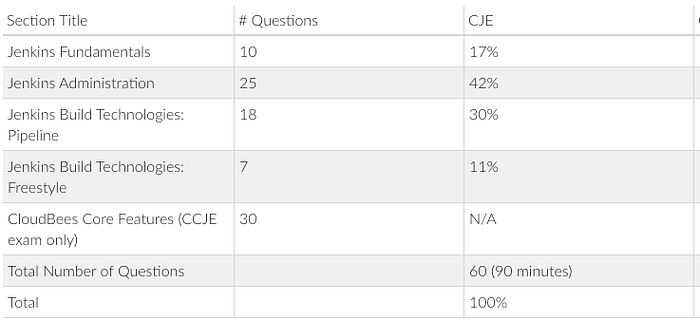

• The entire exam is divided into 4 main topics

For more info

Certification Guide and Information

Based on my experience you must need to know these three topics to clear this exam-

• Jenkins Plugins
• Artifacts
• DSL(Scripted and Declarative pipeline)

1: Difference between CI and CD?

Continuous Integration(CI)

• Is the frequent, automatic integration of code.
• Automatically tests all new and modified code with the master

Continuous Delivery(CD)

• Ensures that the code is always ready to be deployed.
• Manual approval is required to actually deploy the software to production.

NOTE: Please remember CD is the natural extension of CI.

2: Artifacts Question? (Surprisingly there were 6–8 questions related to Artifacts)

• In simplest word, it’s just a file produced as a result of a Jenkins build.
• As a default process, artifacts are stored where they are created so they are deleted when the workspace is wiped.
• To save the artifacts we need to achieve it.

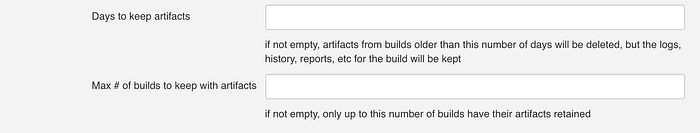

• They store indefinitely unless you have a retention policy and should be deleted periodically.

Few points to remember-

• Archiving artifacts is the Post build action.

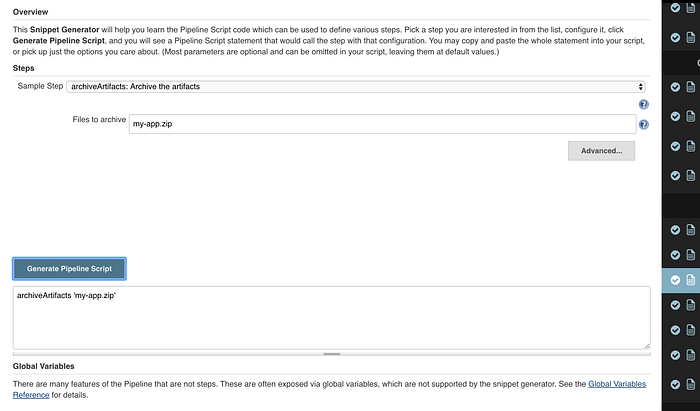

• For Pipeline step you need to use archiveArtifacts. Practice it using Snippet Generator.

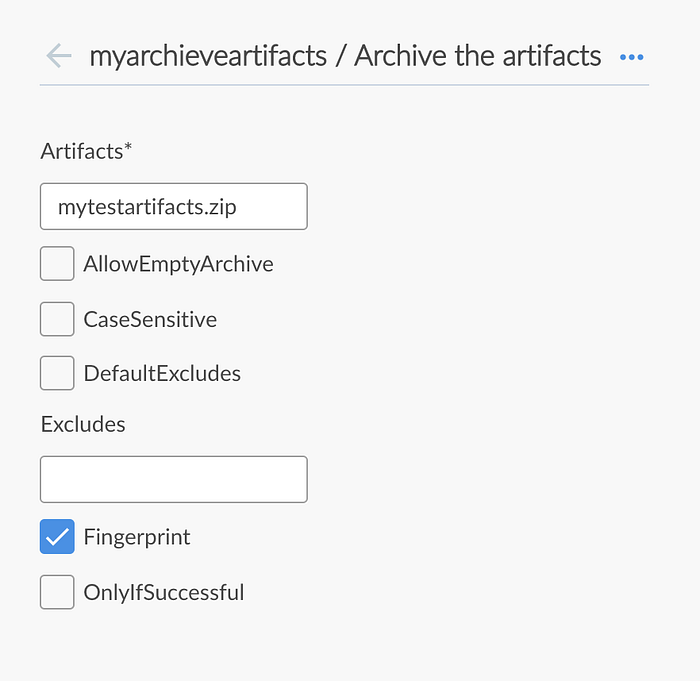

• As well as using Blue Ocean Editor

stage('archiveartifacts') {
          steps {
            archiveArtifacts(artifacts: 'my-test.zip', fingerprint: true)

• Location of fingerprints(fingerprint is the MD5 checksum of an artifact)

/var/lib/jenkins/fingerprints

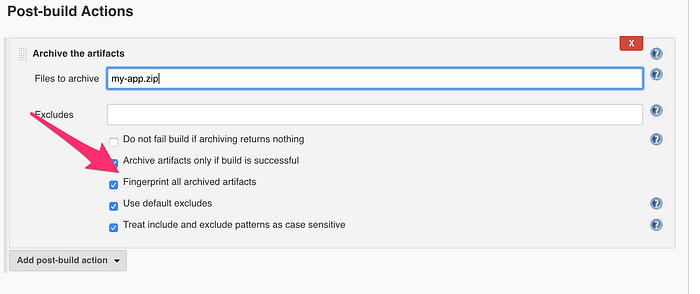

• How to enable it(Merely check the Fingerprint box when you create the archiving step)

NOTE: Jenkins uses Fingerprint to keep track of artifacts without any ambiguity.

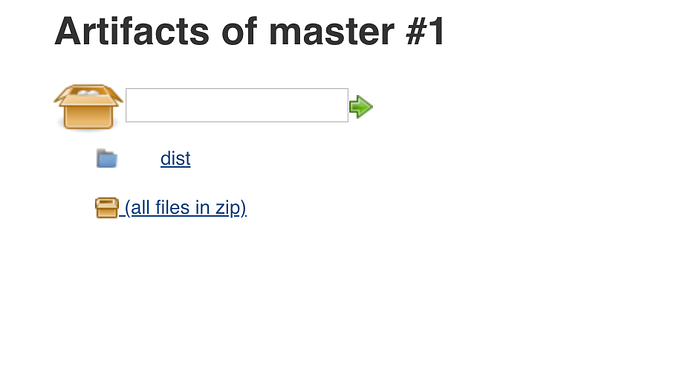

• Once archived, an archive is attached to the build that produced it.

http://<jenkins url?/job/<your job name>/<build number>/artifact/

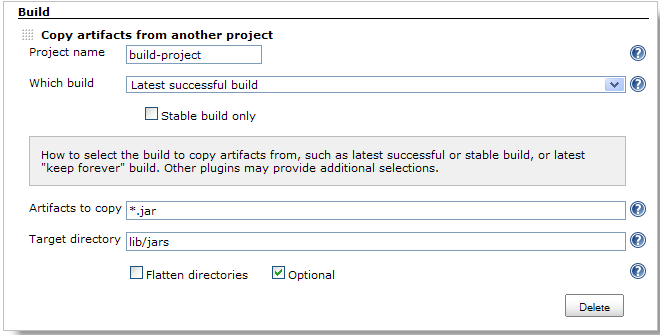

• Use of Copy Artifact Plugin(to take artifacts from one project(Pipeline run) and copy them to another project)

Reference

Copy Artifact

• To access the artifacts via Blue Ocean Editor

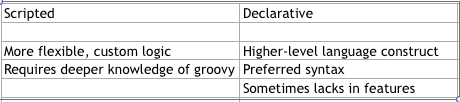

3: Scripted Pipeline vs Declarative Pipeline?

# Declarative Pipeline Example
pipeline {
   agent any
stages {
      stage('Hello') {
         steps {
            echo 'Hello World'
         }
      }
   }
}
# Scripted Pipeline Example
node {
   def mvnHome
   stage('Preparation') { // for display purposes
      // Get some code from a GitHub repository
      git 'https://github.com/jglick/simple-maven-project-with-tests.git'
      // Get the Maven tool.
      // ** NOTE: This 'M3' Maven tool must be configured
      // **       in the global configuration.
      mvnHome = tool 'M3'
   }
   stage('Build') {
      // Run the maven build
      withEnv(["MVN_HOME=$mvnHome"]) {
         if (isUnix()) {
            sh '"$MVN_HOME/bin/mvn" -Dmaven.test.failure.ignore clean package'
         } else {
            bat(/"%MVN_HOME%\bin\mvn" -Dmaven.test.failure.ignore clean package/)
         }
      }
   }
   stage('Results') {
      junit '**/target/surefire-reports/TEST-*.xml'
      archiveArtifacts 'target/*.jar'
   }
}

Reference

Pipeline Syntax

4: Difference between Polling/Pull vs Pushing/Webhook

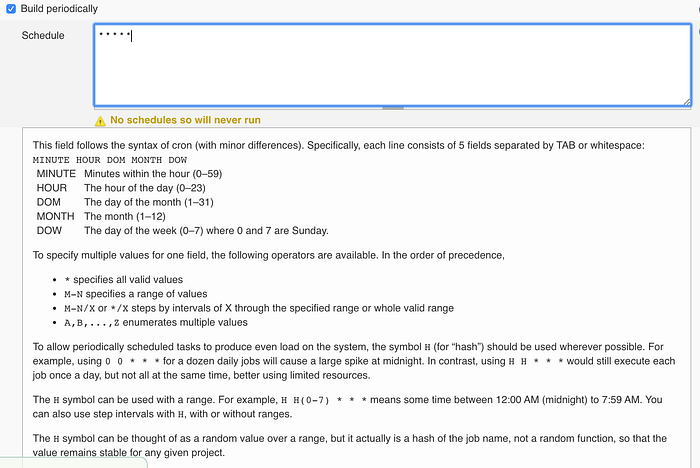

Pull/Polling: Setup an SCM Polling Trigger

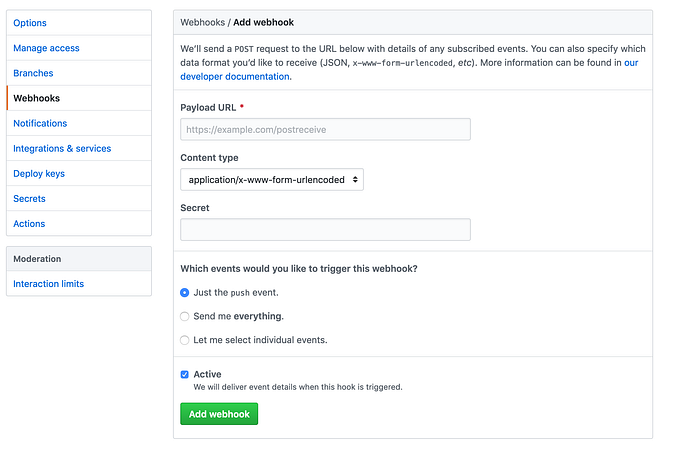

Push/Webhook: Setup a hook from the repository to trigger job

When to use Push vs Pull

• Pull for when you don’t control the repository or polling is ok
• Push for when you need an immediate build or don’t want to waste resources on polling

NOTE: Polling is less efficient, both for your computers and for your people since you have to wait — on the order of minutes — for your builds to happen, instead of them happening essentially instantly.

Reference

Polling must die: triggering Jenkins builds from a git hook

5: Jenkinsfile

• Make sure you understand all the constructs in Jenkinsfile

pipeline {
    agent any
    stages {
        stage('Build') {
            steps {
                //
            }
        }
        stage('Test') {
            steps {
                //
            }
        }
        stage('Deploy') {
            steps {
                //
            }
        }
    }
}

agent: The agent section specifies where the entire Pipeline or a specific stage, will execute in the Jenkins environment depending on where the agent section is placed.

• Check the different parameter agent support

1: any
2: none
3: label
4: node
5: docker
6: Kubernetes

Pipeline Syntax

Stages

• Containing a sequence of one or more stage directives, the stages section is where the bulk of the "work" described by a Pipeline will be located.

Pipeline Syntax

Steps

• The steps section defines a series of one or more steps to be executed in a given stage directive.

Pipeline Syntax

NOTE: Exam will try to confuse you with words like step vs steps.

6: Different type of testing

Make sure you understand different types of testing

• Unit Tests: Test a small piece of code
• Integration Tests: Validate Integration between multiple sub-systems(eg: database)
• Smoke Tests: Validates basic functions of the system also known as Sanity Checking
• Functional Tests: Validates the normal behaviors against the expectations and requirements
• Acceptance Tests: Tests the full product from the perspective of the end user use cases.

7: Notification in Jenkins?

Understand the different kind of notification mechanism

• Slack(Slack Notification plugin)

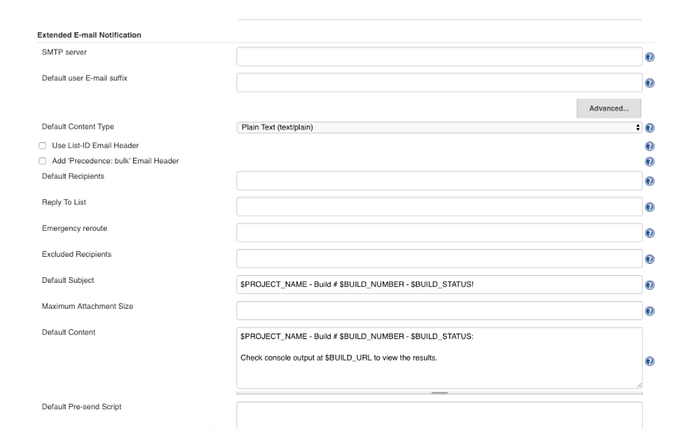

• Email(Pay special attention to Email extension plugin)

Email Extension Plugin

8: Distributed Build

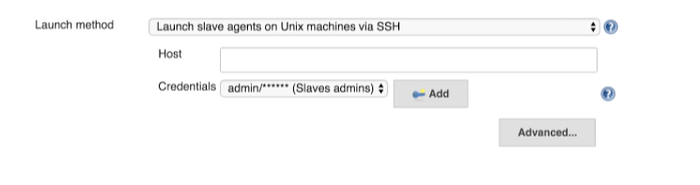

• How to configure Node(Worker)

• Remember this term Fungible which means Replaceable/Throwable i.e Agent can be substituted by any other agent.
• Minimum Requirement for Jenkins

1: Java8 or Java 11 is required(Java 9 and Java10 not supported)
Beware of operating system Limits
2: Maximum number of open files
3: Maximum number of forked processes
4: Network tuning (packet size, TCP timeouts)

9: Bunch of question related to plugins

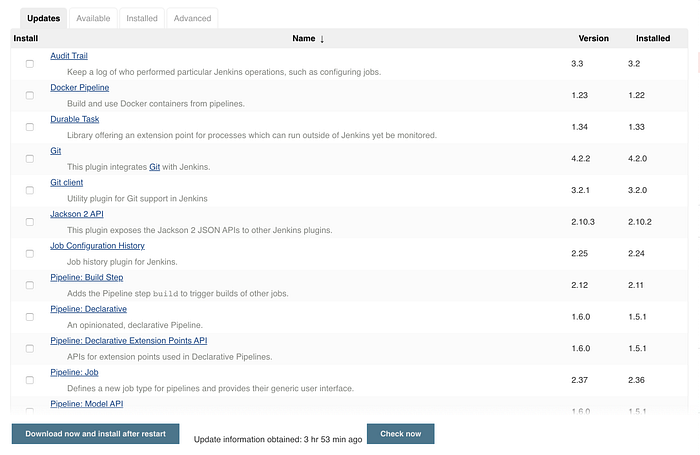

• Make sure you go to each and every tab of the Plugin Manager page

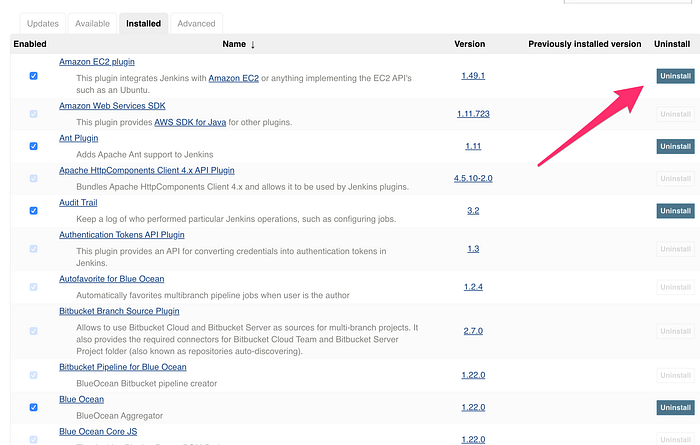

• Pay special attention to these options, eg. under Installed Tab you have the option to Uninstall

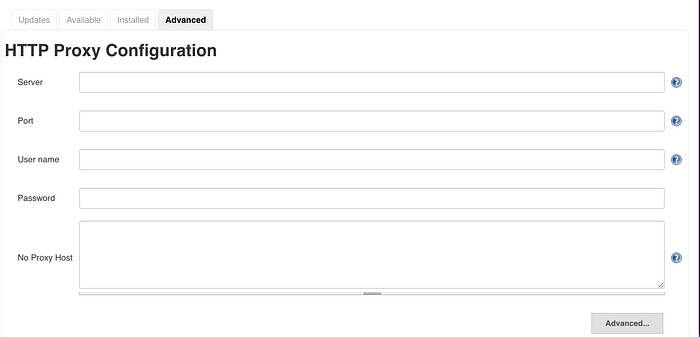

• Under advanced tab, you have the option to configure proxy

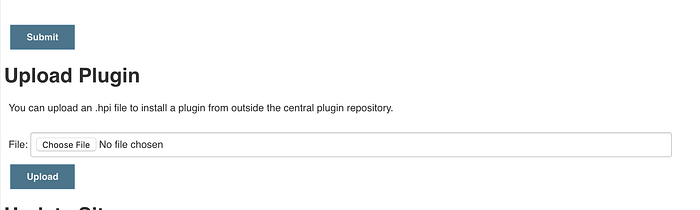

• Upload Plugin

NOTE: Plugin extension is .hpi

10: Jenkins API

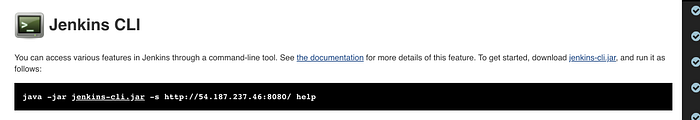

• How to use jenkins cli

java -jar jenkins-cli.jar -s <jenkins url> -auth username:<jenkins token> list-jobs
java -jar jenkins-cli.jar -s http://localhost:8080 -auth username:<jenkins token> build <build name>

11: Matrix Security/Project Based Security

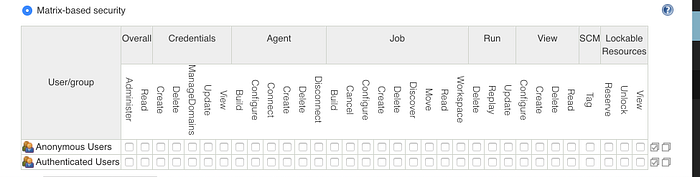

Matrix Based Security: Maps user/groups to Jenkins actions

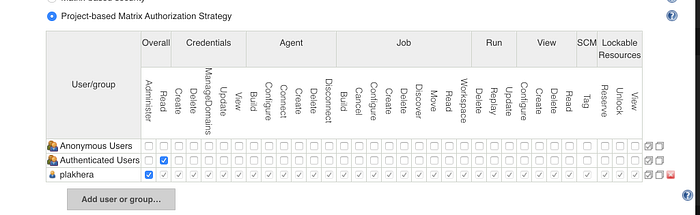

Project Based Matrix Authorization Strategy: It allows an access control list matrix to be defined for project. This feature is very useful when we want to give access to specific jobs to specific users

12: Installation wizard

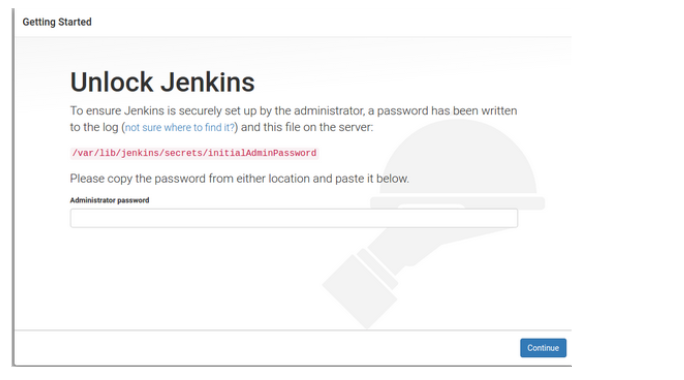

• Make sure you remember initial setup screen

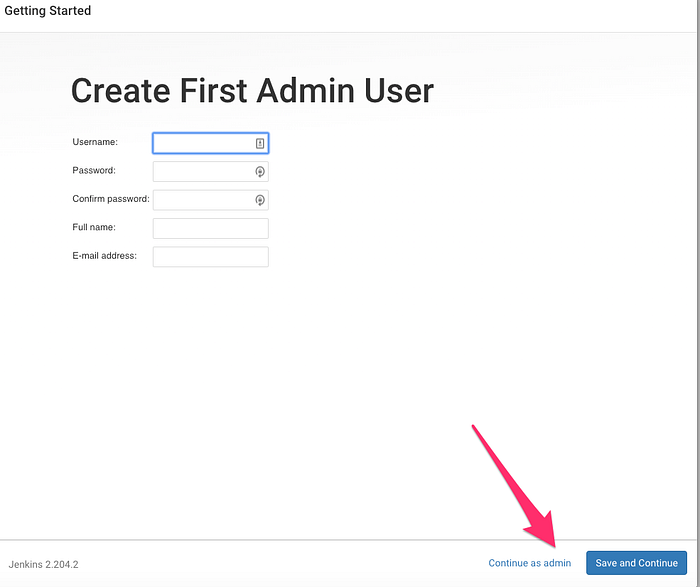

• You can skip user creation during installation by continuing as admin

• How to skip install wizard

/etc/sysconfig/jenkins
JENKINS_JAVA_OPTIONS="-Djava.awt.headless=true -D jenkins.install.runSetupWizard=false"

13: Parameterized jobs

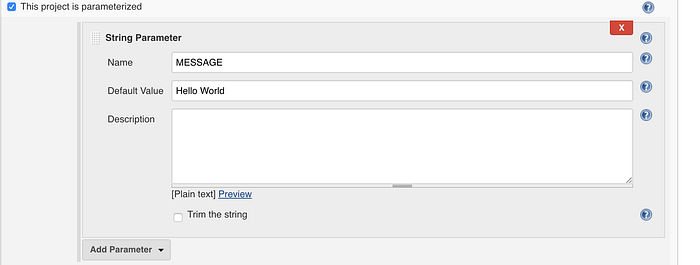

• You should know how to parameterized the build

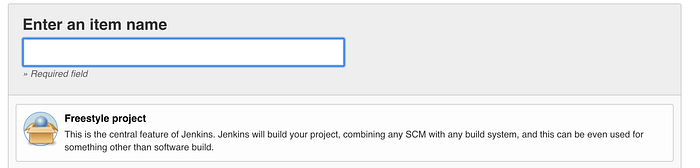

14: Freestyle job

• Hands-on experience on how to create the Freestyle Job

15: Difference between the Folder and View

• Folder creates a container that stores nested items in it. Useful for grouping things together. Unlike view, which is just a filter, a folder creates a separate namespace so you can have multiple things of the same name as long as they are in different folders.

16: Global Libraries

• I will highly recommend watching this video.

17: MultiBranch Pipeline

• Please try to create and play with these pipelines.

18: Few questions related to GitHub Organization which I have no idea how it works with Jenkins

Gotchas

1: The exam I took was Certified Jenkins Engineer 2020, all the resources available on Internet talk about the Certified Jenkins Engineer 2018 exam.

2: Resources I listed above(exam preparation section), none of them covered topics in depth. I would like to divide the exam into three sections.

a: Straight forward question(Either you know the answer or not)
b: Question which required memorization(Definitely not my cup of tea)
c: In-depth question, you must need to know that topic in-depth to answer those question

3: After reading all the blogs, I thought it’s going to be an easy ride, but the exam was much tougher than my expectation, I barely crossed the passing line.

Final Words

• Key to clear this exam is your hands on experience
• Keep calm and write this exam
• Thanks for taking the time to read my blog, let me know in case if you have any questions.
